  Aralion Disk Array from 200G to 480G

Storage Volume started from 200G
      and up to 480G,600G, 720G

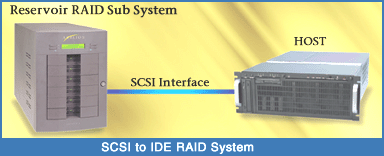

- High Performance BUS Interface for Unix & PC server

Enhanced interface ensures fast and secure data transmission.
Wide Ultra 2 LVD/SE Multimode SCSI-3 for PC server, Windows2000 server ...

Enhanced high performance Interface for HP9000, RS6000 are also available.

The lowest cost storage option for HP9000, RS6000, Sun and Windows ...


- Mass-Capacity Storage Device

All commercial hard disks can be installed independent of their model, capacity, and access time... etc. Up to 6 disks CAN be installed and configured in accordance with proper applications.

- Ready to prepare for Disk failure and Power failure

Automatically detects hard disk failure and shows its status.
In case of a disk failure, Reservoir automatically rebuilds the damaged disk content to a spare disk. Replacing damaged disk to a new disk will not affect system performance.

The replaced disk is automatically configured as a spare disk.
Dual power system prevents data loss and makes stable operation possible in case of one power system not being functional.


- Mass-Capacity Storage Device

All commercial hard disks can be installed independent of their model, capacity, and access time, etc.  Up to 6 disks CAN be installed and configured in accordance with proper applications.




Specification
  Performance
  Processor Intel i960RM 100MHz Embedded RISC Processor
  Cache Memory/Function 64 ~128MB ECC-RAM with Write Back & Error correction
  Raid level 0, 1, 0+1, 3, 5
  Data Transfer Rate Up to 80MB/s
  Operating System Windows 95/98/2000/NT/XP, LINUX, Solaris, UnixWare, HP-UX, AIX
  Host/Disk Interface PC Host : Ultra 2 LVD/SE Multimode SCSI-3 (80MB/s)
Unix Host : depended on hardware platform
Disk : Ultra DMA, support 66,100,133
  System Capacity MAX 480GB (80GB x 6)
  User Interface LCD : 2*16 Character type LCD (with Backlight)
GUI : Windows 95/98, NT,2000 Compatible
KEY : Easy operation
  SCSI ID Assignment 0~15
  Data Recovery & Rebuild Automatic Data Recovery -> Rebuild
  Diagnostic & Management Automatic Check with Temperature/Power/Fan sensor/Heat sensor
